- Universal Mount Assembly

Step-by-step instructions for assembling and mounting your turfRad sensor using the universal mount.

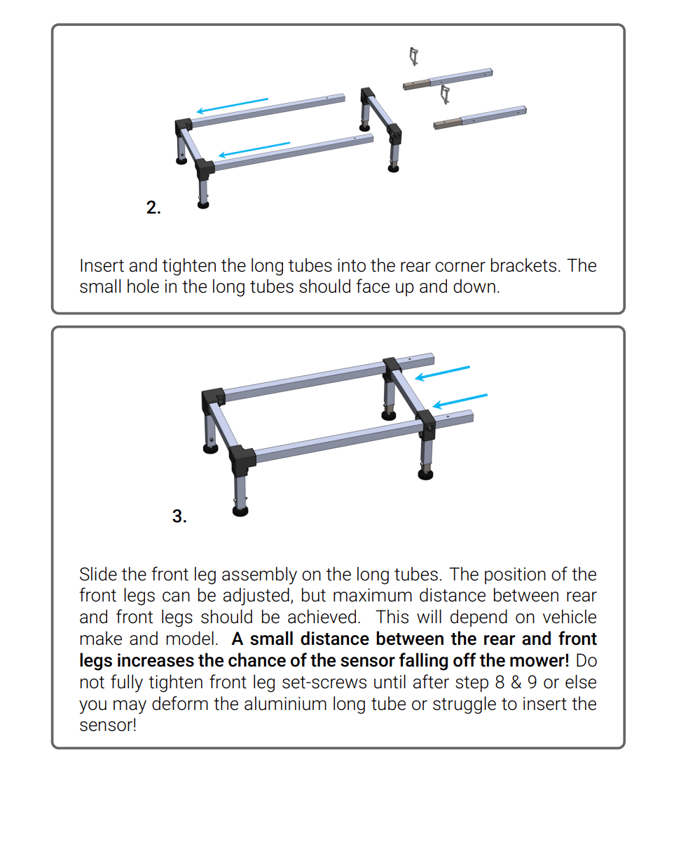

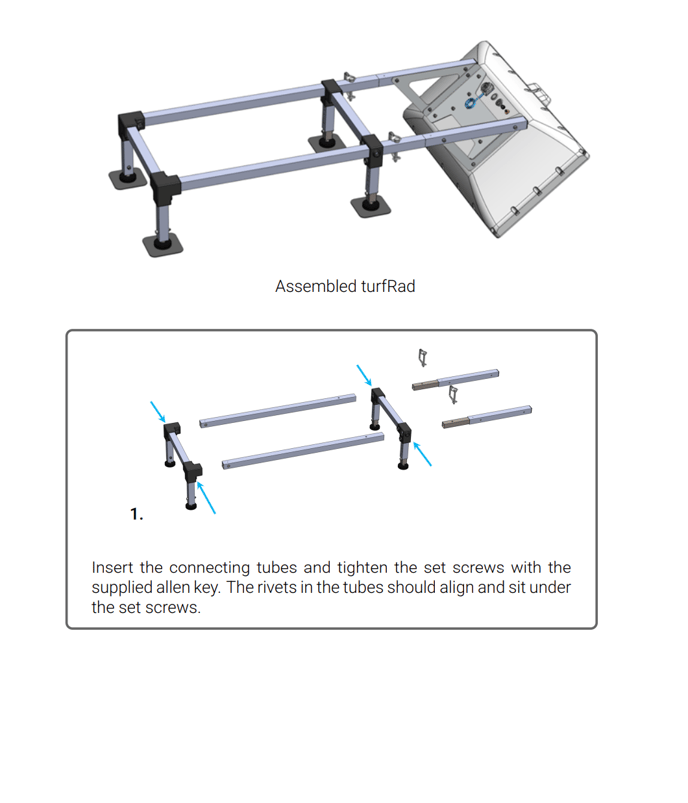

Screenshot 2025-07-02 at 13.50.07Screenshot 2025-07-02 at 13.50.35

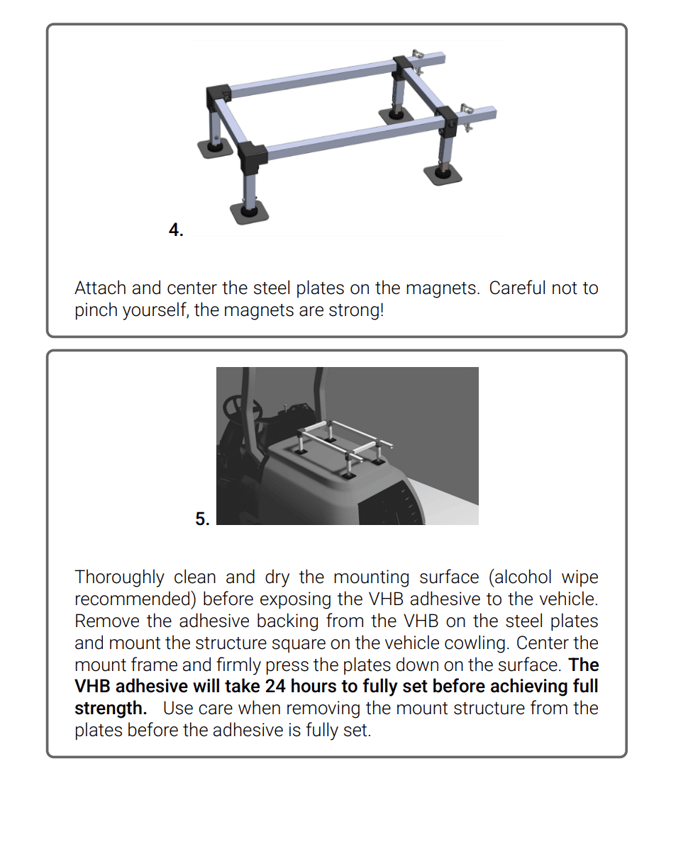

Screenshot 2025-07-02 at 13.50.54

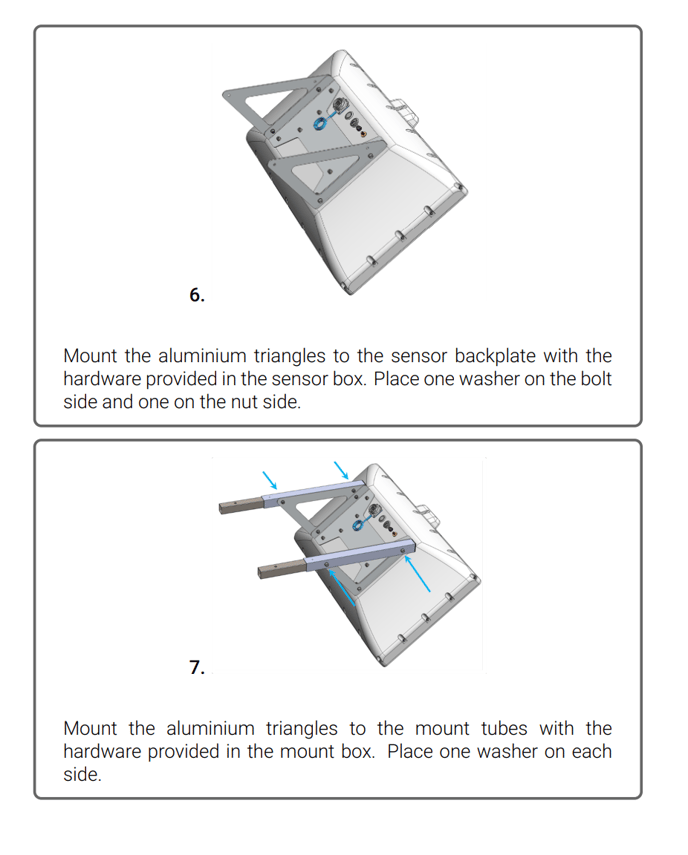

Screenshot 2025-07-02 at 13.51.04

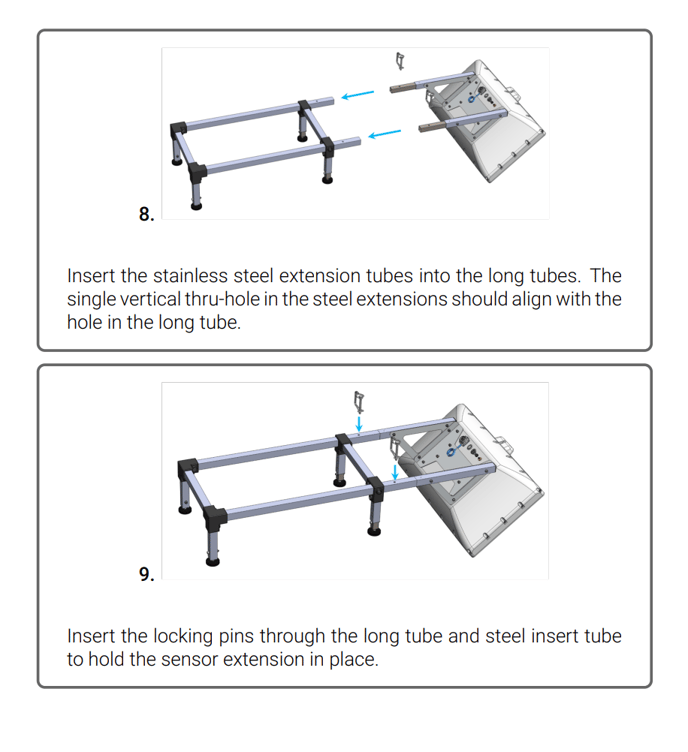

Screenshot 2025-07-02 at 13.51.13

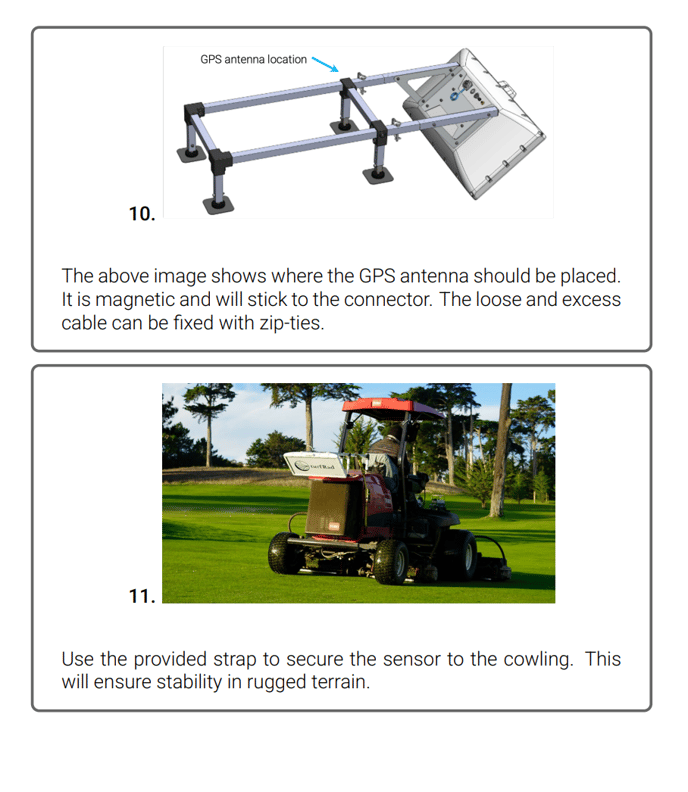

Screenshot 2025-07-02 at 13.51.22

Note: If you need some more steel plates and VHB tape you can also order some on amazone finde links here
