Array Sensor Mounting

You can use the universal turfRad mount hardware as a component of your "array" or you can go fully custom.

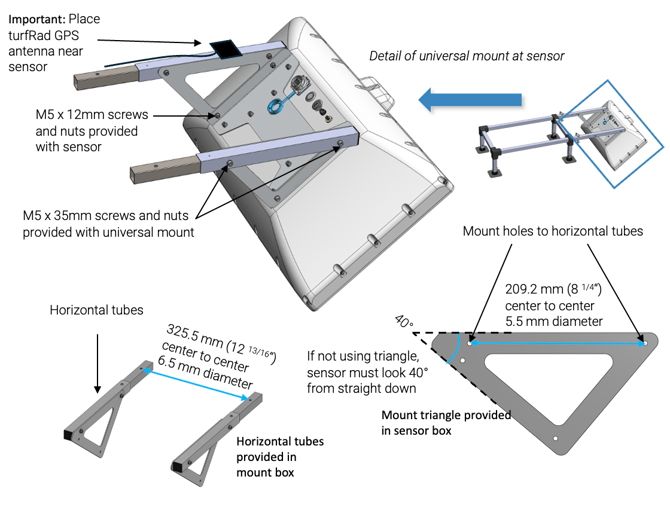

The aluminum mount “triangles”are included in the sensor box (no mount needed) and provide a set of horizontally aligned holes to mount to the sensor. The antenna angle of 40 degrees should be maintained, measured relative to downward-looking.​

Because the sensors are designed and manufactured in Europe (Switzerland), the units for dimensions and hardware are metric. We provide the conversion to inches in parentheses below.



Screenshot 2025-08-01 at 12.32.01

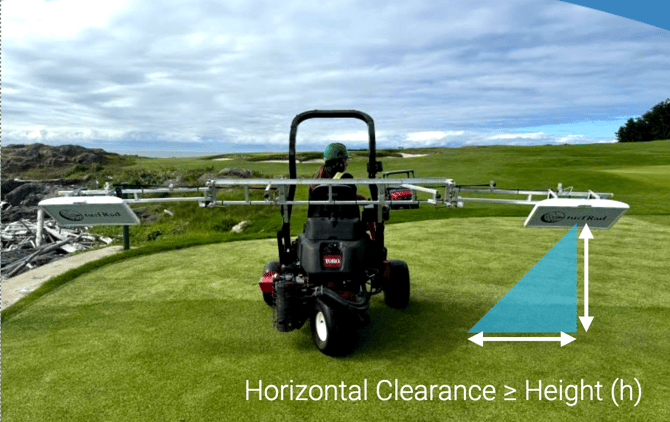

The horizontal clearance away from the vehicle should be greater than, or equal to, the sensor mount height. This ensures your turfRad sensors are only measuring the intended turf.

Important: place your turRad GPS antenna near the sensor.

Screenshot 2025-08-02 at 11.31.06
